G2 Series Energy Storage Inverter

Product image 1

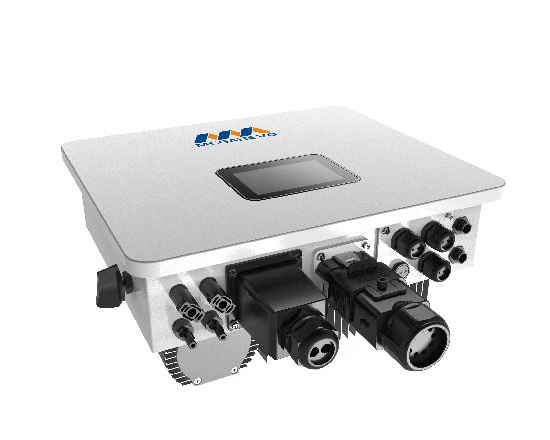

Product image 2
Product image 3

G2 Series Energy Storage Inverter

G2 Series Energy Storage Inverter

This series of energy storage inverters, while maintaining the excellent performance of the previous generation, has improved in terms of product size and weight. This makes the product more compact and lightweight, with a 0.5% increase in full-load efficiency and a significant improvement in cost-effectiveness.
Model R3KL1-AC R3K6L1-AC R4KL1-AC R4K6L1-AC R5KL1-AC R6KL1-AC R8KL1-AC

R3KL1D-AC R3K6L1D-AC R4KL1D-AC R4KL1D-AC R5KL1D-AC R6KL1D-AC R8KL1D-AC
AC output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Nominal voltage/range(V) 230 /176~270
Frequency (Hz) 50 /60
Power factor 1(0.8 leading-0.8 lagging)
THDi <2%
AC grid type L+N+PE
Battery
Battery voltage range(V) 40~58
Max. charging voltage(V) 58
Max. charge/discharge current(A) 60/60 72/72 80/80 92/92 100/100 120/120 160/160
Battery type Lithium /Lead-acid
Communication interface CAN/RS485
Max.battery output power/ duration (kW/min) / 8/20
EPS output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Rated voltage(V) 230
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Rated frequency(Hz) 50/60
Automatic switchover time(ms) <10
THDu <2%
Overload capacity 110%, 60S/ 120%, 30S/ 150%, 10S
General data
Battery charge/discharge efficiency 96%
PV Max. efficiency 98%
Europe efficiency 97%
MPPT efficiency 99.9%
Ingress protection IP65
Noise emission (dB) <35
Operation temperature (℃) -25～ 60
Cooling Natural
Relative humidity 0 ~95%（non-condensing）
Operating altitude(m) 2,000 (>2,000 Derating)
Dimensions W*D*H (mm) 454.5*200*467 484.5*200*467
Net weight (kg) 19（20 With generator) 22(23 With generator)
Topology Non-isolated
Standby loss(W) <15
Display Optional (colorful touch screen /no screen)
Interface:RS485 / Wifi / 4G / CAN / DRM Yes/ Opt/ Opt/ Yes/ Yes


Product Highlights

Safe and Reliable

The product has passed certification tests for IEC/EN62109-1/-2, IEC/EN62477-1, South Africa's NRS097-2-1;2017, IEC/EN 61000-6-1, and IEC/EN 61000-6-3, ensuring safety and reliability.

User-Friendly and Flexible

Supports parallel connection of multiple units and is compatible with various battery types, including lead-acid and lithium-ion batteries, providing flexibility and user-friendliness.

Economical and Efficient

With a maximum efficiency of ≥98%, compact size, and space-saving design, the product delivers higher cost-effectiveness.

Select Model
From $296.40

Original: $988.00

-70%
G2 Series Energy Storage Inverter—

$988.00

$296.40

Product Information

Shipping & Returns

Description

This series of energy storage inverters, while maintaining the excellent performance of the previous generation, has improved in terms of product size and weight. This makes the product more compact and lightweight, with a 0.5% increase in full-load efficiency and a significant improvement in cost-effectiveness.
Model R3KL1-AC R3K6L1-AC R4KL1-AC R4K6L1-AC R5KL1-AC R6KL1-AC R8KL1-AC

R3KL1D-AC R3K6L1D-AC R4KL1D-AC R4KL1D-AC R5KL1D-AC R6KL1D-AC R8KL1D-AC
AC output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Nominal voltage/range(V) 230 /176~270
Frequency (Hz) 50 /60
Power factor 1(0.8 leading-0.8 lagging)
THDi <2%
AC grid type L+N+PE
Battery
Battery voltage range(V) 40~58
Max. charging voltage(V) 58
Max. charge/discharge current(A) 60/60 72/72 80/80 92/92 100/100 120/120 160/160
Battery type Lithium /Lead-acid
Communication interface CAN/RS485
Max.battery output power/ duration (kW/min) / 8/20
EPS output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Rated voltage(V) 230
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Rated frequency(Hz) 50/60
Automatic switchover time(ms) <10
THDu <2%
Overload capacity 110%, 60S/ 120%, 30S/ 150%, 10S
General data
Battery charge/discharge efficiency 96%
PV Max. efficiency 98%
Europe efficiency 97%
MPPT efficiency 99.9%
Ingress protection IP65
Noise emission (dB) <35
Operation temperature (℃) -25～ 60
Cooling Natural
Relative humidity 0 ~95%（non-condensing）
Operating altitude(m) 2,000 (>2,000 Derating)
Dimensions W*D*H (mm) 454.5*200*467 484.5*200*467
Net weight (kg) 19（20 With generator) 22(23 With generator)
Topology Non-isolated
Standby loss(W) <15
Display Optional (colorful touch screen /no screen)
Interface:RS485 / Wifi / 4G / CAN / DRM Yes/ Opt/ Opt/ Yes/ Yes


Product Highlights

Safe and Reliable

The product has passed certification tests for IEC/EN62109-1/-2, IEC/EN62477-1, South Africa's NRS097-2-1;2017, IEC/EN 61000-6-1, and IEC/EN 61000-6-3, ensuring safety and reliability.

User-Friendly and Flexible

Supports parallel connection of multiple units and is compatible with various battery types, including lead-acid and lithium-ion batteries, providing flexibility and user-friendliness.

Economical and Efficient

With a maximum efficiency of ≥98%, compact size, and space-saving design, the product delivers higher cost-effectiveness.
