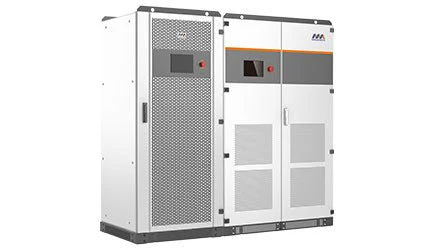

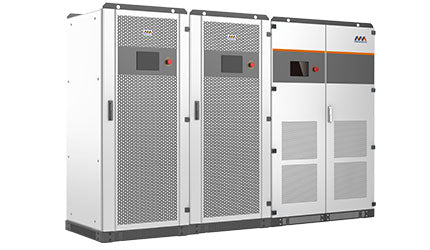

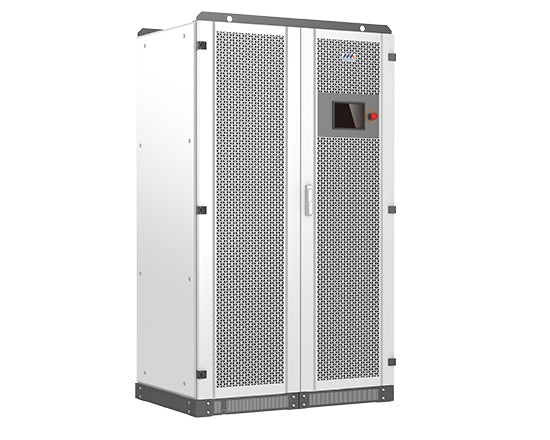

The MPS series photovoltaic storage hybrid inverter adopts an integrated design, incorporating photovoltaic controllers, energy storage inverters, and automatic switching units for grid-connected and off-grid operation. This significantly enhances customer deployment efficiency and reduces installation costs. The photovoltaic capacity can be flexibly configured, greatly improving system availability, making it suitable for deployment in remote areas and islands with relatively weak power infrastructure.

Technical Specification	Inverter Model
	MPS0030	MPS0050	MPS0100	MPS0150	MPS0250	MPS0500
AC(on-grid)
Max output power (kVA)	33	55	110	165	275	550
Rated power(kW)	30	50	100	150	250	500
Rated voltage(V)	400
Rated current (A)	43	72	144	216	361	722
Voltage range(V)	320-460
Rated frequency (Hz)	50/60
Frequency range(Hz)	45~55/55~65
THDi	<3%
Power factor	1lagging~1leading
AC connection	3W+N+PE
Transformer ratio	100/400		270/400			315/400
AC(Off Grid)
Rated output power(kVA)	33	55	110	165	275	550
Rated power(kW)	30	50	100	150	250	500
Rated voltage(V)	400
Rated current(A)	43	72	144	216	361	722
THDu	≤1% linear; or≤5% nonlinear
Rated frequency(Hz)	50/60
Overload capacity	110% long-term
Photovoltaic input
Max.PV input voltage(V)	1000
Max.PV power(kW)	60/120		120/180/240		300/360	600/660/720
MPPT voltage range(V)	250-850
MPPT voltage range@full load (V)	450-850
Battery
Battery voltage range(V)	250~850	320~850	420~850			500~850
Max. charging power(kW)	60/120		120/180/240		300/360	600/660/720
General data
Dimension W*D*H(mm)	800*800*1900		1,200*800*2,050		(600*720*2,050)*1+ 1,200*800*2,050	(600*720*2,050)*2+ 1,600*1050*2,050
Weight（kg）	620/650	720/750	1,120/1,150/1,180	1,250/1,280/1,310	1,980/2,010	3,265/3,295/3,325
Operation temperature(℃)	-30 ~ 55
Relative humidity	0 ~95% non-condensing
Ingress protection	IP20
Noise emission(dB)	<70
Operation altitude (m)	5,000(>3,000 Derating)
Cooling	Air Cooling
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certificates	EN62109-1/-2， EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116,IEC 61683

Product Features

Safety and Reliability

The product has undergone various testing certifications, including EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116, IEC 61683, ensuring its safety and reliability.

Flexible Configuration

It supports simultaneous connection of photovoltaic, diesel generators, batteries, and loads. It possesses strong environmental adaptability and supports black start. Various operating modes can be flexibly configured to meet diverse requirements.

Convenient Operation and Maintenance

MPS supports unmanned operation and comes with a standard HMI digital display panel, allowing intuitive monitoring of core parameters such as power, current, and voltage. This enables quick assessment of equipment operation and health. Combined with cloud-based EMS, remote monitoring is achievable, making operation and maintenance more convenient.
